full 32 character line display mod?
-
waltermixxx
- Posts: 129
- Joined: Sun Feb 03, 2019 10:31 pm
full 32 character line display mod?
hi there, wondering if anyone has done this mod, that allows you to display 32 characters on a regular video monitor.

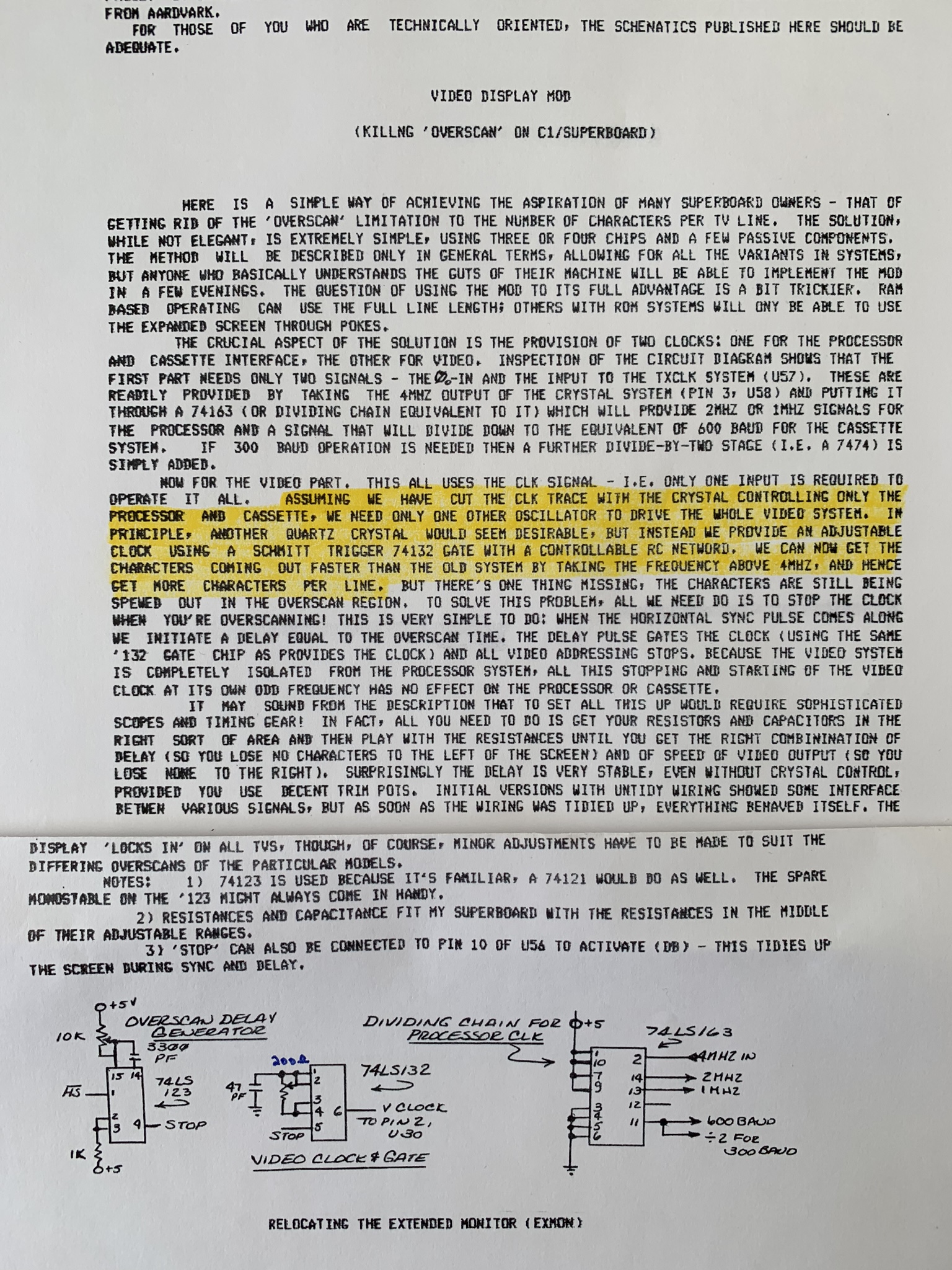

the article was from the Aardvark journal, shown here...
thoughts?
the article was from the Aardvark journal, shown here...
thoughts?
Turning into quite an OSI Junkie (HTFDTH?) Superboard II REV B-40K, 9600b, HC-05 Bluetooth, Superboard II Rev D, C4P rebuild- 502, 542c, 540B.
-
dave
- Site Admin
- Posts: 726
- Joined: Tue Sep 09, 2008 5:24 am
Re: full 32 character line display mod?
I think it is a nice mod. It saves a lot of chips vs a crystal / counter design, but requires more delicate tuning. I also think it would be nice, on the Rev D, to get rid of the extra flip-flop stage inserted between the column and row counter stages, that effectively doubles the height of each line in 64-char mode, and instead add 1K more RAM to get 32x64 characters.
-
Steve Gray
- Posts: 327
- Joined: Mon Oct 06, 2008 1:54 pm
- Location: Markham, Ontario, Canada
- Contact:
Re: full 32 character line display mod?
I’d also be interested in this mod plus a simple 64 x 32 mod circuit. I recreated the 540B schematic in kicad but was disappointed with the sheer number of chips needed. If the mod above could simplify the circuitry it would help with some of the projects on my todo list
