C4P build
-
waltermixxx
- Posts: 129
- Joined: Sun Feb 03, 2019 10:31 pm
C4P build

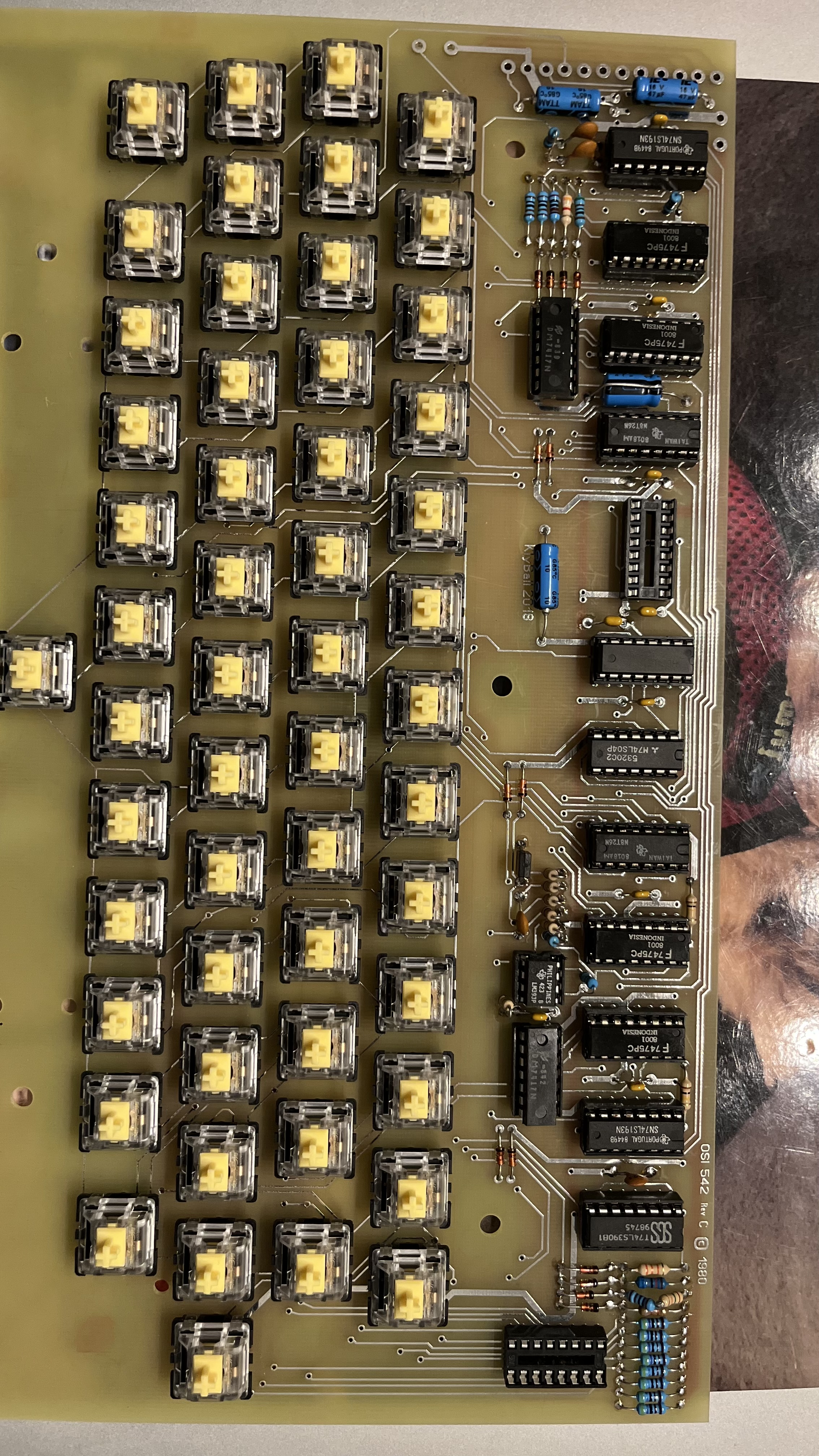

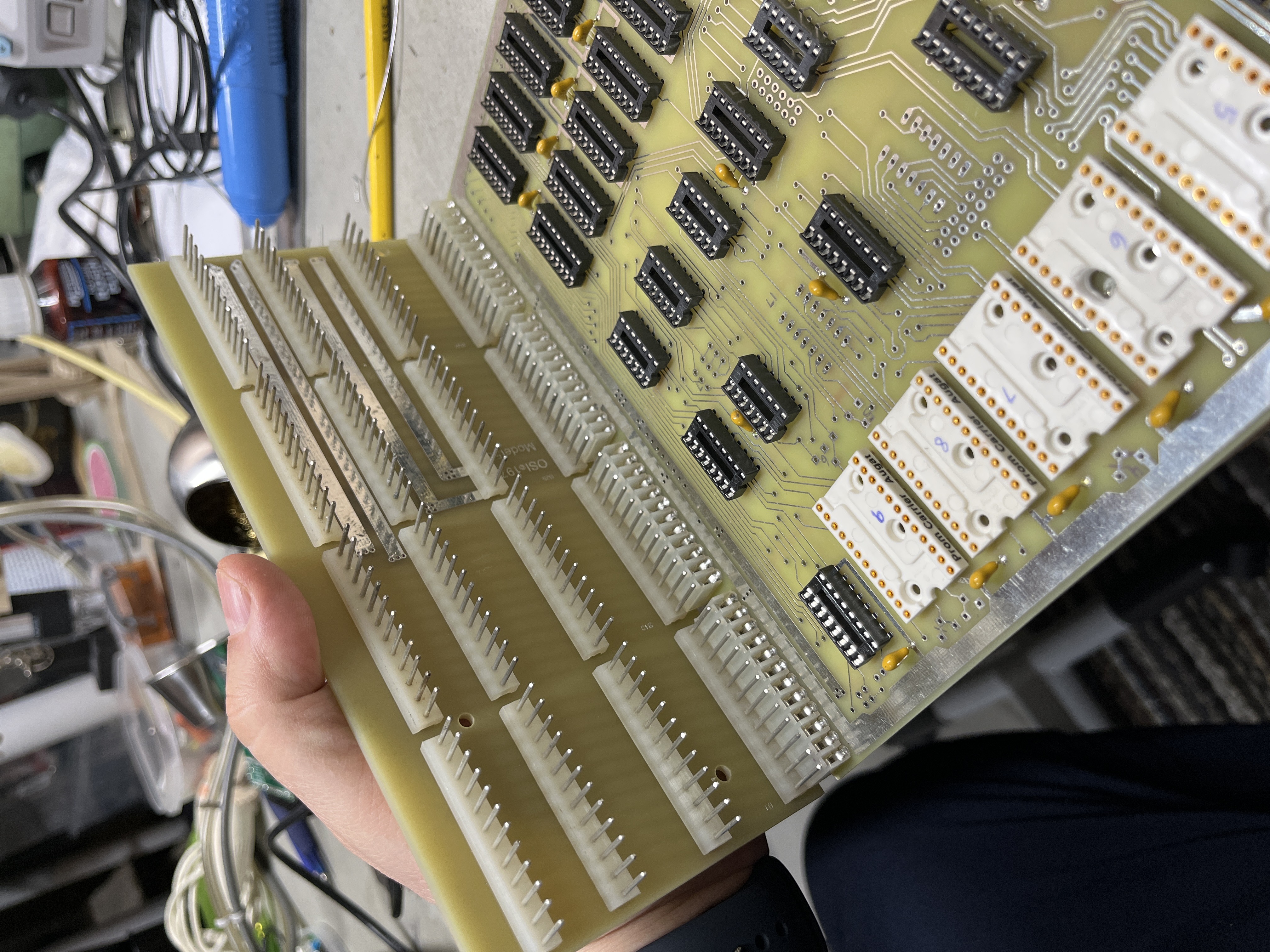

Howdy. I restarted my C4P build. I have my back plain done and my keyboard done and tested. I will continue with my 502 and 540B boards. Pictures to come.
- Attachments
-
- EC9905C2-CF31-4D27-9202-A0149018C2CD.jpeg (2.68 MiB) Viewed 2887 times
-
- F00535EF-0E31-42B7-8685-D265B763FEFE.jpeg (2.68 MiB) Viewed 2887 times
Turning into quite an OSI Junkie (HTFDTH?) Superboard II REV B-40K, 9600b, HC-05 Bluetooth, Superboard II Rev D, C4P rebuild- 502, 542c, 540B.
-
Steve Gray
- Posts: 327
- Joined: Mon Oct 06, 2008 1:54 pm
- Location: Markham, Ontario, Canada
- Contact:
Re: C4P build

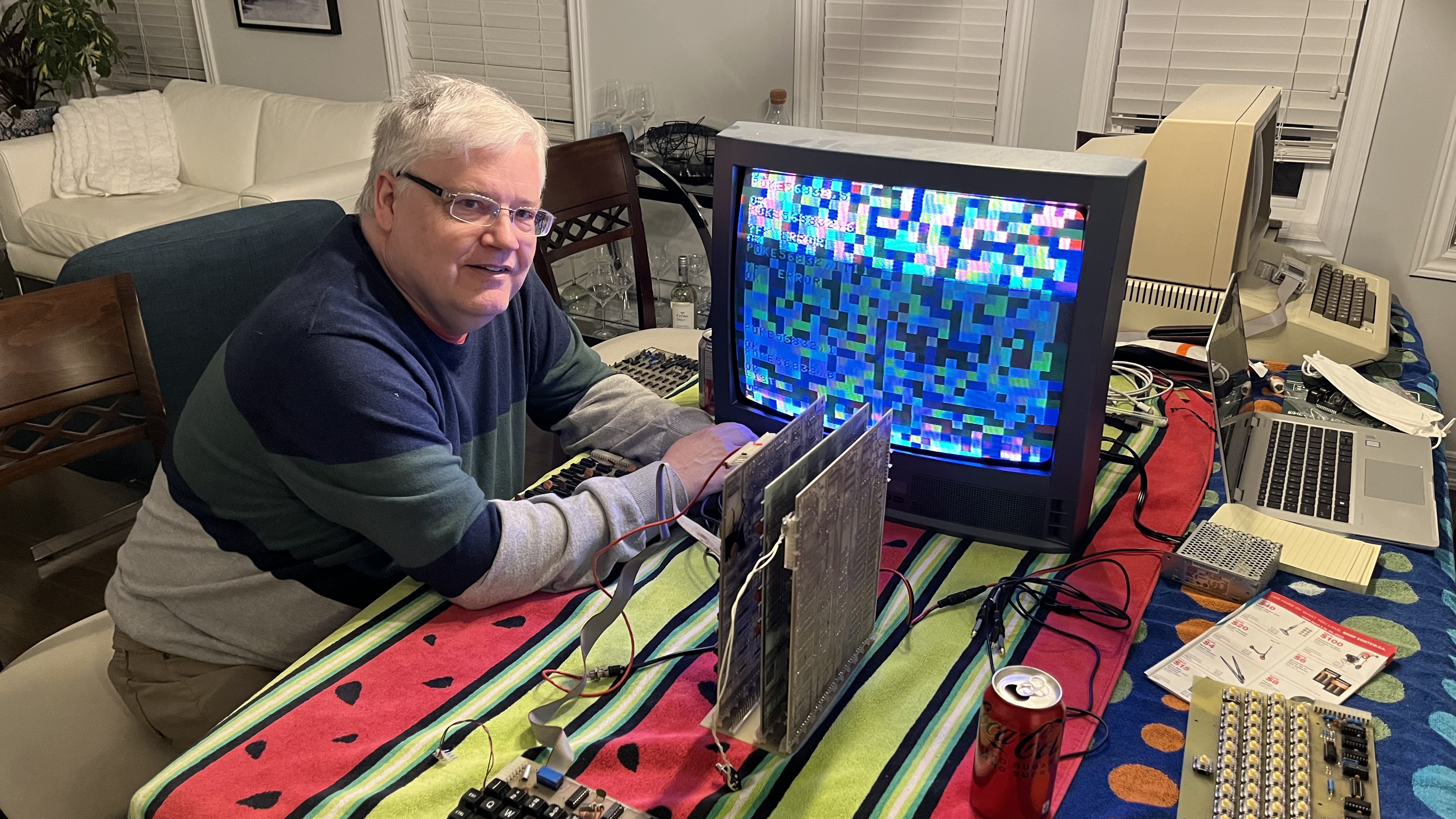

Hey, who's that nerd pointing to the screen? oh, right it's me.
Walter, next time we have to get some action shots of you!
It was a fun evening. To clarify, I brought over a bunch of my boards so we could test Walter's keyboard and backplane with working 502 and 540. We ended up tweaking my 540 boards to get a better colour screen. One board (of 3) had no colour at all until adjusted. We also tested a couple of my memory boards.
Looking forward to seeing your other boards get completed, and then we'll have to figure out how to make a case for the whole system.
Steve
Walter, next time we have to get some action shots of you!
It was a fun evening. To clarify, I brought over a bunch of my boards so we could test Walter's keyboard and backplane with working 502 and 540. We ended up tweaking my 540 boards to get a better colour screen. One board (of 3) had no colour at all until adjusted. We also tested a couple of my memory boards.
Looking forward to seeing your other boards get completed, and then we'll have to figure out how to make a case for the whole system.
Steve
C4P working, C1P working. 600D Replica working, C4P+D&N floppy not working. 505 board, 610 board, Mittendorf board, TOSIE hacker board need testing, PicoDOS disk untested.
